Casun 28X28mm NEMA 11 Stepper Motor 0.67A Two Phase Bipolar Stepper Motor

Name: Casun 28X28mm NEMA 11 Stepper Motor 067A Two Phase Bipolar Stepper Motor
Brand: Casun
Price: 6.49 USD

Wholesale Casun 28X28mm NEMA 11 Stepper Motor 0.67A Two Phase Bipolar Stepper Motor from china suppliers

Brand Name : Casun

Model Number : 28SHD4401-20B

Certification : CE,ROSH,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $6.49-$9.5

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Step angel : 1.8°

Holding Torque : 95mN.m

Current : 0.67A

Motor Length : 44.6mm

Shaft : D Shaft 20mm Length

Customized : The motor can be designed &manufactured with customized request.

Contact Now

28X28x44mm 0.67A 2 Phase Bipolar 1.8 Degree Stepper Motor Nema 11 Mini Stepping Motor

The 28mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Customizations on request

Appearance

Dimensions

Motor Specifications

Step Angel	1.8 °
Fram Size	28 mm
Number of Phase	2 Phase
Rated Current	0.6 7A
Holding Torque	95 mN.m
Resistance	6.8 ohm
Inductance	4.9 mH
Rotor Inertia	9 g-cm²
Motor weight	0.16 kg
Number of leads	4
Connection	Bipolar

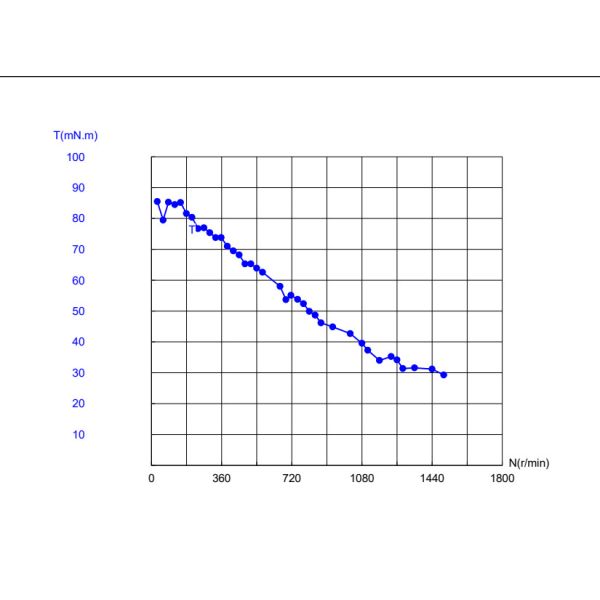

Torque Curves

Casun 28X28mm NEMA 11 Stepper Motor 0.67A Two Phase Bipolar Stepper Motor

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get a quote" button below to tell us your requirements.
